Computer Organization and Structure
Homework
#3
Due:
2007/12/4
Please
write the following three programs in MIPS assembly language.
1. Combination:
Your
task is to implement the combination function to compute combination of X and
Y, and X, Y should be given by user. For example, given X = 4, Y = 2, then
compute
and get the
answer 6. On the other hand, given X = 2, Y = 4, you should compute
. If X or Y is a negative integer, please show an error
message. Basically you don’t have to deal with BIG NUMBER problem, but if
you solve it, write the feature in the document and you will get bonus credits.
Your output should
look like this.
----Combination Function---
Please type 2 integers, and each with the
Enter keys.
4
2
6 is the combination results.
2. Matrix Transpose:
Write
a SPIM program that will compute the transpose of the matrix stored in row major
order starting at the location labeled Original in the starter template below. The
transposed matrix should be stored starting at the location labeled Second. The
arrays we use will be 4x4 elements. Here is the program template to help you get
started (The program template is included in the file
http://graphics.im.ntu.edu.tw/~robin/courses/arch07/matrix.s).
.data
strA: .asciiz
"Original Matrix:\n"
strB: .asciiz
"Transpose Matrix:\n"
newline: .asciiz
"\n"
space : .asciiz
" "
# This is the start of the original array.
Original: .word
200, 270, 250, 100
.word
205, 230, 105, 235
.word
190, 95, 90, 205
.word
80, 205, 110, 215
# The next statement allocates room for
the other array.
# The array takes up 4*16=64 bytes.
#
Second: .space
64
.globl main
.text
main:
# Your fully commented program starts
here.
Your output should
look like this.
Original Matrix:
200 270 250 100
205 230 105 235
190 95 90 205
80 205 110 215
Transpose Matrix:
200 205 190 80
270 230 95 205
250 105 90 110
100 235 205 215
Tower of Hanoi problem
Your
task is to complete a recursive implementation of the Tower of Hanoi problem in
order to get familiar with assembly programming. You will need to implement the
mvdsk
function in http://graphics.im.ntu.edu.tw/~robin/courses/arch07/hanoi.s.
Refer to the algorithm from http://en.wikipedia.org/wiki/Tower_of_Hanoi.

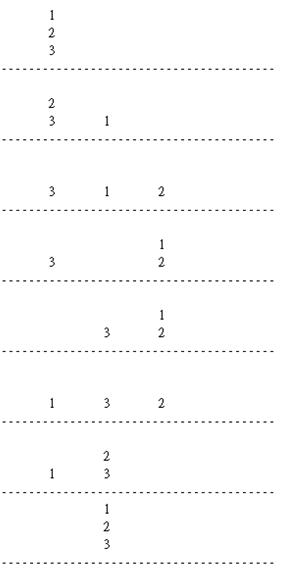

Your output should
look like this.
Submission
& Grading
|
Description |
For Each Problem |
|
Program compiles
without errors |
10% |
|
Program executes
correctly |
60% |
|
Documentation
and description of the program |
10% |
|
Presentation |
10% |
|
Implement Detail |
10% |
